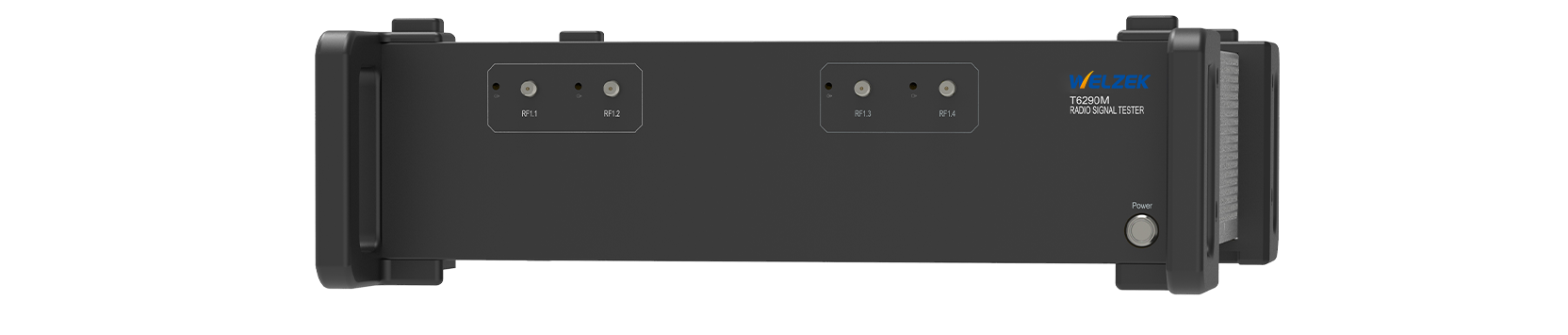

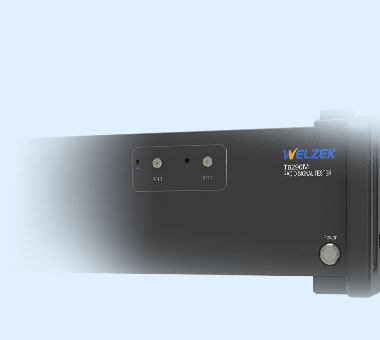

T6290MRadio Signal Tester

T6290M
Features

5G NR mmWave Testing

2 Full-Duplex RF Ports

4 Full-Duplex RF Ports
Application Scenarios

5G NR mmWave

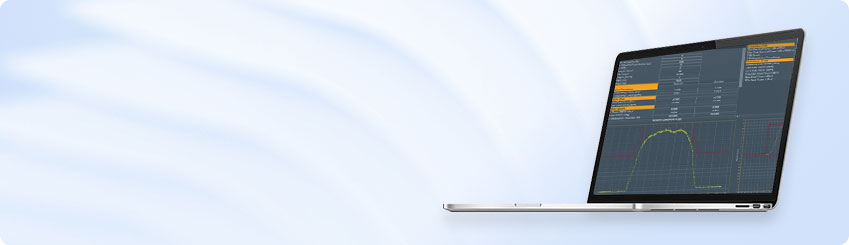

Unified, Streamlined User Interface
High Performance

18–44GHz Band

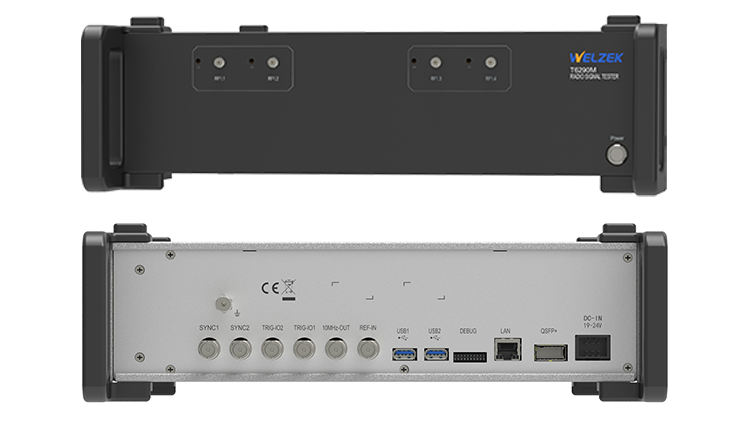

Basic Parameters
Channels and Ports
2 channels, 2 half-duplex RX/TX ports
Frequency Range
18 GHz – 44 GHz
Signal Analysis Bandwidth
2 GHz
Input Power Range
-70 dBm to +20 dBm
Input Power Accuracy
±2.0 dB
Phase Noise
< 0.6 degrees (1 kHz to 100 MHz)
RF Connector
2 × 2.4 mm female
USB1 / USB2
2 × Type-A, USB 3.0 Slave
Trigger Input/Output
BNC female, TTL nominal
RFF Input/Output
BNC female, 50 Ω nom., AC coupled, >0 dBm
Enquiry Details
Application Scenarios

Mobile Devices
Smartphones
Automotive
Automotive mmWave Radar
Core Devices
Chip Module
