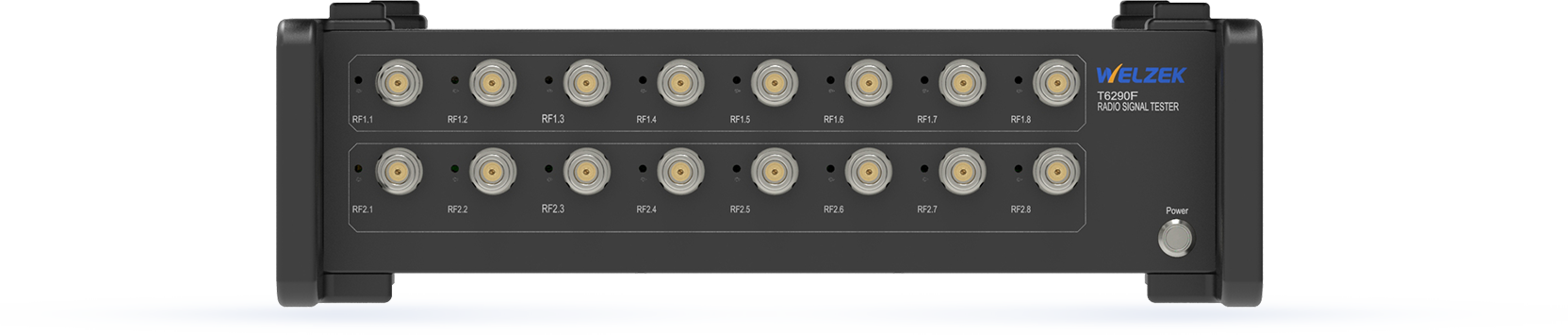

T6290F-Welzek Technologies US, Inc.

T6290FWireless Signal Tester

T6290F

2/3/4/5G NR FR1/FR2/FR3
Cellular
Wi-Fi 4/5/6/6e/7/8/HaLow
Wi-Fi
BR/EDR/LE/CS/HDT(1.x~6.0)
Bluetooth
BDS/GPS/Galileo
Satellite Navigation
NearLink SLE/SLB/SLP
NearLink
UWB 15.4/15.4z/15.4ab
UWB
DOCSIS 3.1/4.0
DOCSIS
Tiantong/LEO/5G NTN
SatCom

MET Certification

FCC Compliance Certification

Versatile · Powerful · Universal

Providing comprehensive and precise testing capabilities

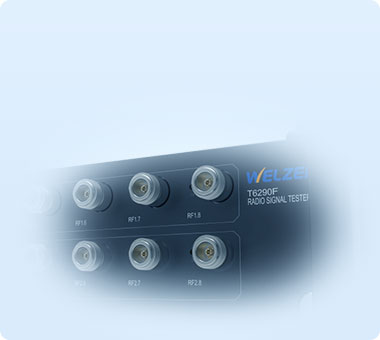

Dual RF Channels

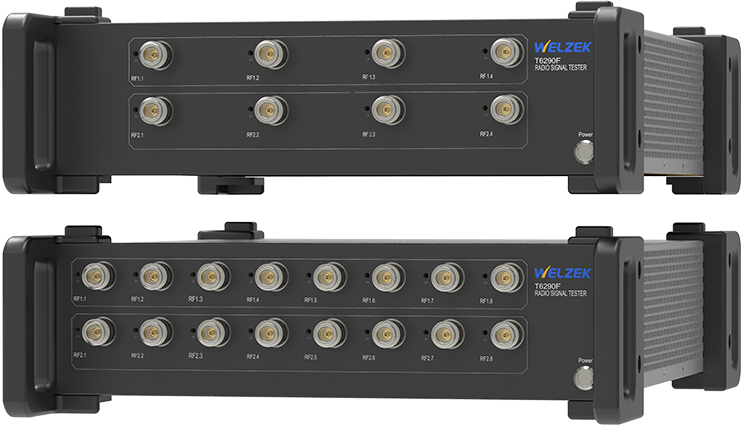

Up to 16 full-duplex RF ports

Application Scenarios

R&D and Production

Unified, Streamlined User Interface

High Performance

Wide frequency range: 5 MHz to 10 GHz

Ultra-wide analysis bandwidth: 2 GHz

High Flexibility

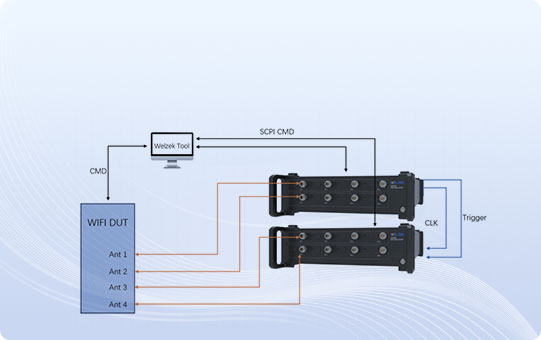

Supports 4x4 MIMO, 8x8 MIMO, and 16x16 MIMO testing

200+ Mainstream Chips

Limitless Scalability

Basic Parameters

Channels and Ports: 2 channels,8/16 TX/RX full duplex ports

Frequency Range: 5MHz to 10GHz

Bandwidth: 2GHz

Power Measurement Accuracy: +/-0.5dB

Integrated Phase Noise: < 0.13 degrees (1kHz to 100MHz)

VSG Output Power Range: -130dBm至+15dBm

VSA Maximum Input Power: +34dBm（CW）

EVM: < -50 dB, at 7000MHz,160MHz MCS13
< -49 dB, at 7000MHz,320MHz MCS13

Enquiry Details 

RF Testing
Full Wireless Chain, Prod to R&D

Automated Test Platform Simplifies Test Steps
Covers Validation, Lab & Factory Production

Mobile Devices

Smartphones Tablets Displays AR Glasses

Automotive

Intelligent Cockpit Wireless Anchor Point Digital Car Key

IoT

Wireless Router Smart Lock Gaming Console AI Device Satellite Terminal

Chip & Lab

FEM SOC SIP

 
